Product Description

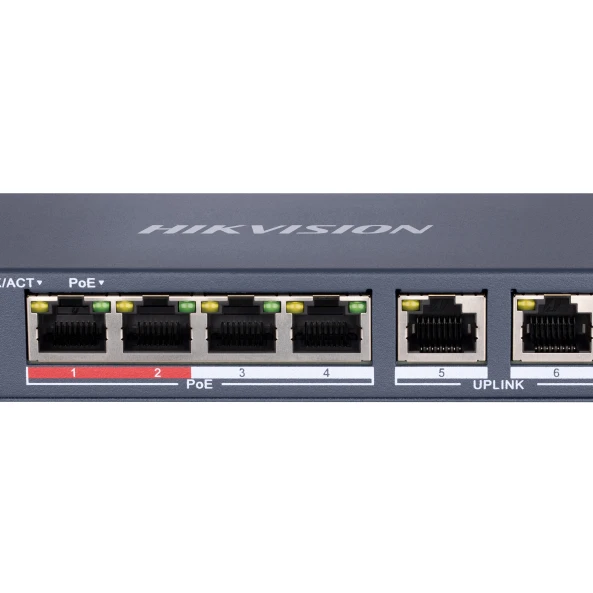

4 Port Fast Ethernet Unmanaged POE Switch 4 x 10/100Mbps PoE port, and 2 × 10/100Mbps RJ45 port. IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output). IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard. 6 KV surge protection for PoE ports. Up to 300 m long-range transmission. Wire-speed forwarding. Store-and-forward switching. Solid high-strength metal shell. Reliable fan-free design. General Shell Metal material Net Weight 0.27 kg (0.60 lb) Gross Weight 0.52 kg (1.15 lb) Dimensions (W × H × D) 145 mm × 68.45 mm × 25.6 mm (5.71'' × 2.69'' × 1.01'') Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F) Operating Humidity 5% to 95% (no condensation) Relative Humidity 5% to 95% (no condensation) Power Supply 48 VDC, 0.8 A Installation Mode Desk-Mounted,Wall-Mounted Max. Power Consumption 38 W Power Consumption in Idle 3 W Surge Protection 6 KV Network Parameters Ports 4 x 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port MAC Address Table 2 K Switching Capacity 1.2 Gbps Packet Forwarding Rate 0.89 Mpps Internal Cache 768 Kbits Dialing Function Long Range Ports 1 to 4 : up to 300 m. Long range performance may vary depend on camera model or cable condition. Software Function VIP Port Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. PoE Power Supply PoE Standard IEEE 802.3af;IEEE 802.3at PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port PoE: Ports 1 to 4 Max. Port Power 30 W PoE Power Budget 35 W Approval EMC FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) Chemistry CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
